PRODUCT DETAILS

PROJECTA PM400 + BONUS DIGITAL DISPLAY CIRCUIT TESTER

*IN STOCK NOW!

The ultimate in power management systems, PM400 encompasses a complete remote control solution for the most advanced setups. Utilising an 11 channel central wiring unit and MPPT, it includes PM300’s advanced LCD display plus a central switch panel, bedroom light/dimming switches and smart phone Bluetooth operation.

The central switch panel can be mounted anywhere and allows remote operation of water pump, lighting and appliances, plus a master switch and night mode. Bedroom lighting switch panels enable light and dimming control from the comfort of your bed. Bluetooth connectivity means you can control and monitor your power system and appliances from inside or outside using the smart phone app - great for outdoor light switching.

COMPONENT LIST - What's in the box?

PM435 - 12V 30A Charger & 35 Amp Power Supply, 30A MPPT Solar Controller, Dimmable Lights
PMLCD-BT - LCD Display with Bluetooth to Suit PM435 & PM335
PMLCDC - 5m Cable to Suit LCD Screen
PM4SW10 - 10 Position Switch Panel
PM4Y - CY Connection to Suit PM4SW10C & PM4TS
PM4SW10C - 4.5m Cable to Suit 10 Position Switch Panel (PM4SW10)
PM4SW2 - 2 Position Switch Panel
PM4SW2Y - Y Connection 0.5m Cable for 2 Position Switch Panel (PM4SW2)
PMSWEX-4 - 4m Extension Cable for Switch Panel, LED and LCD Monitor
PM4TS - Temperature Sensor w/ 5m Cable to Suit PM400
PMBS - Battery Sensor with 3m of Cable
PMAC - AC Power Cord, 1.5m

PM435 WIRING UNIT DIMENSIONS

266mm (L) x 165mm (W) x 129mm (H)

SPECIFICATIONS

12V 30A Charger
35A Power Supply
30A MPPT Solar
100A DC VSR
11 Fused Outputs
LCD/Bluetooth® Control
Remote Switch Panels

Battery Management Systems

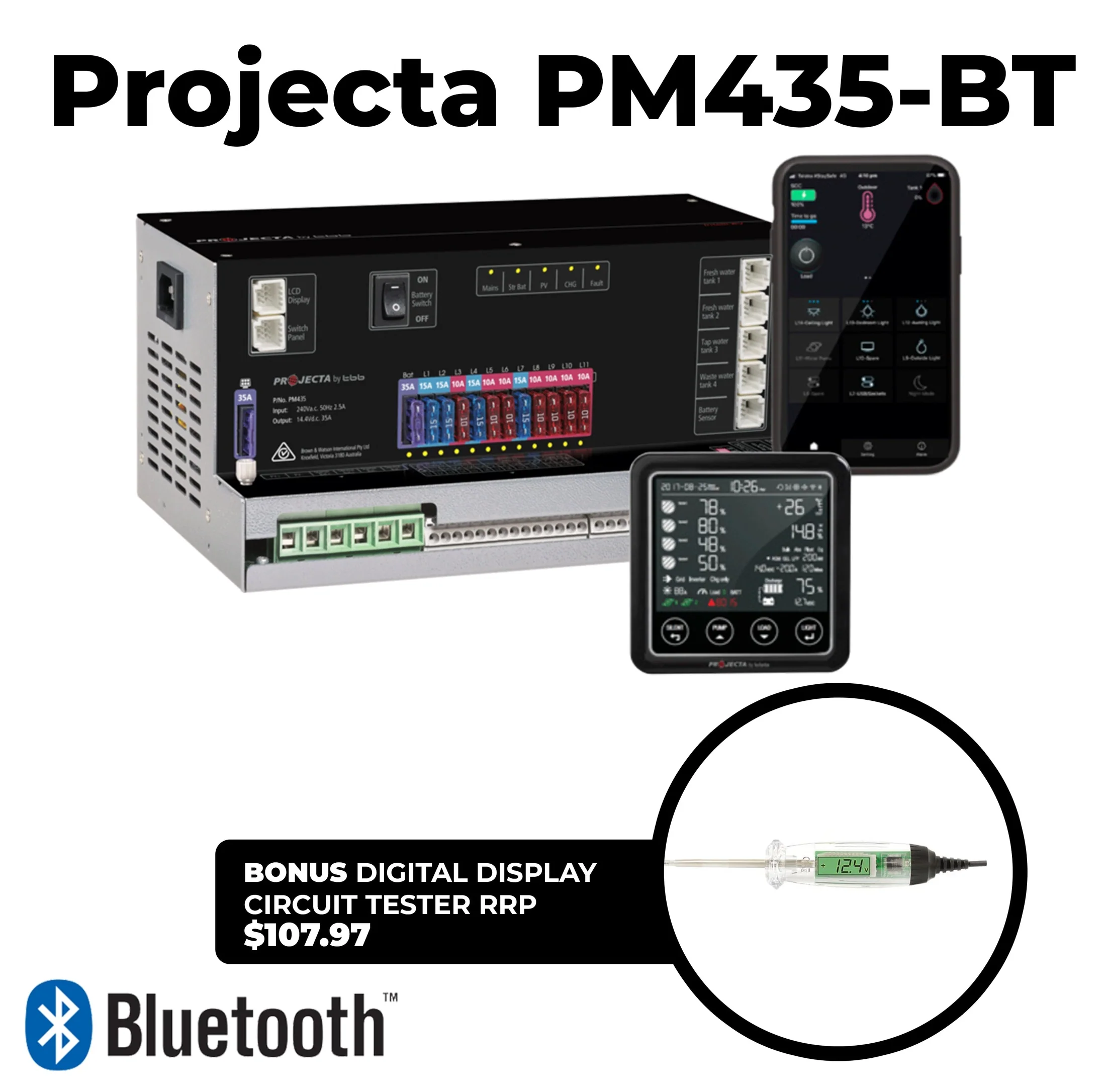

PROJECTA PM435-BT

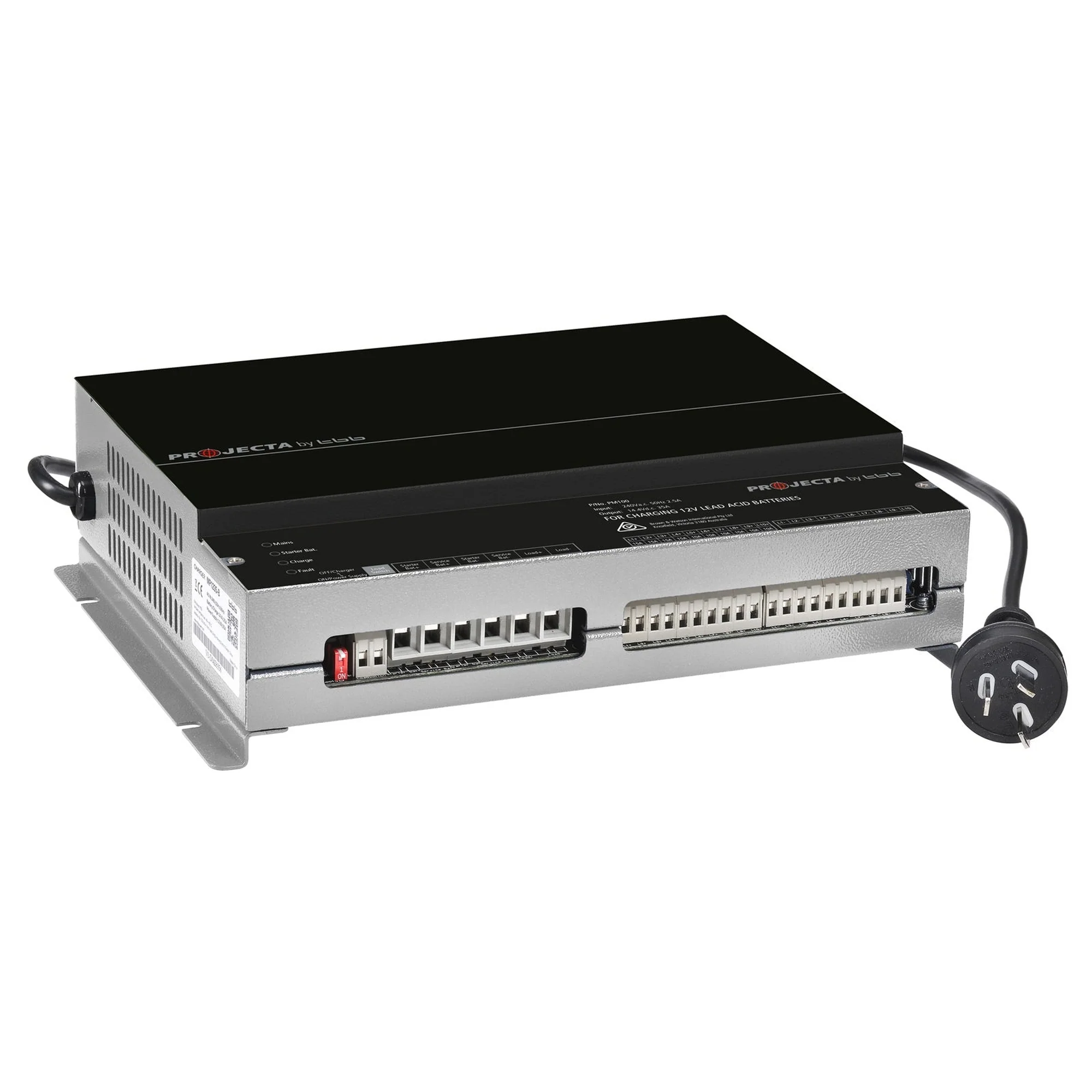

Projecta PM100 RV Power Management System

PROJECTA PM400

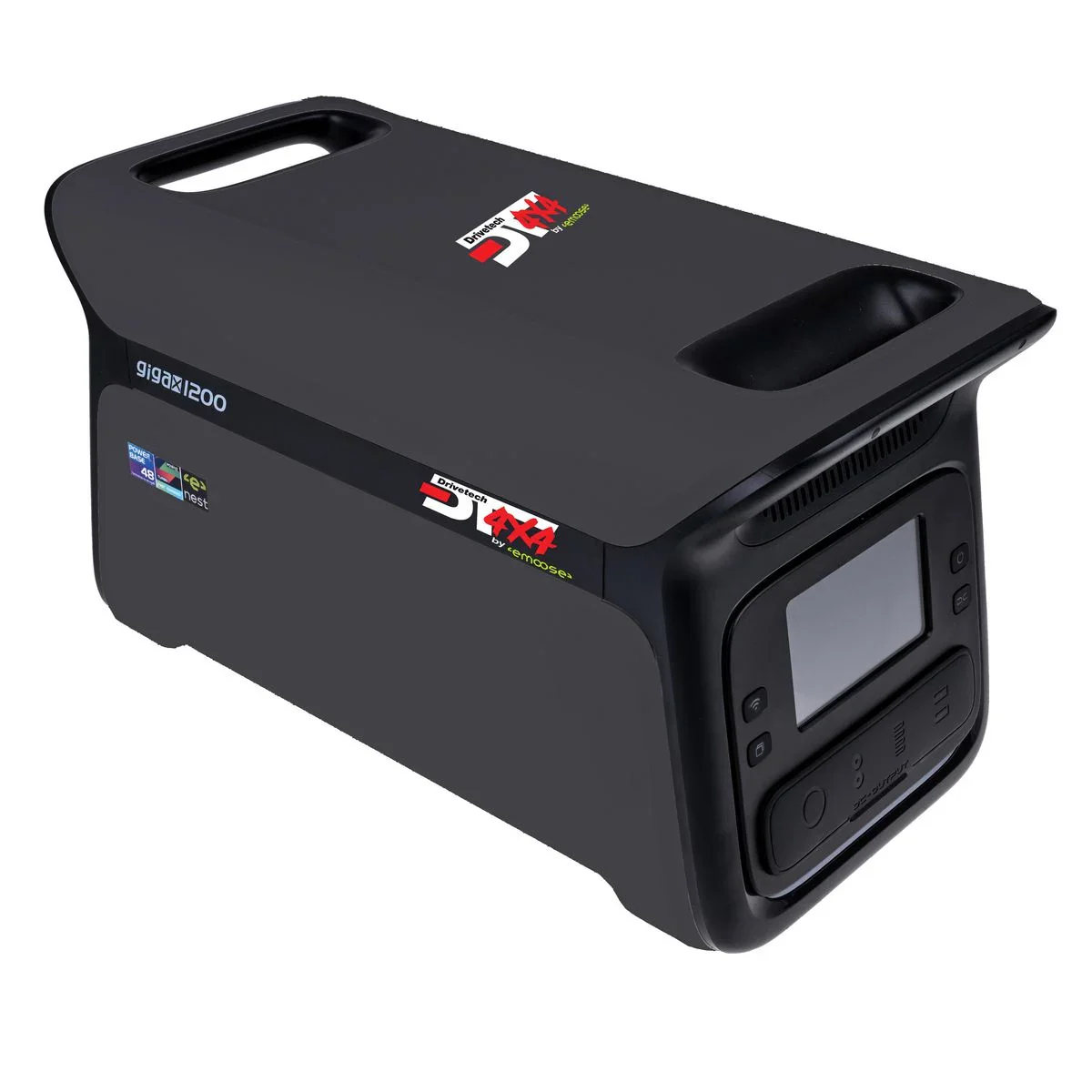

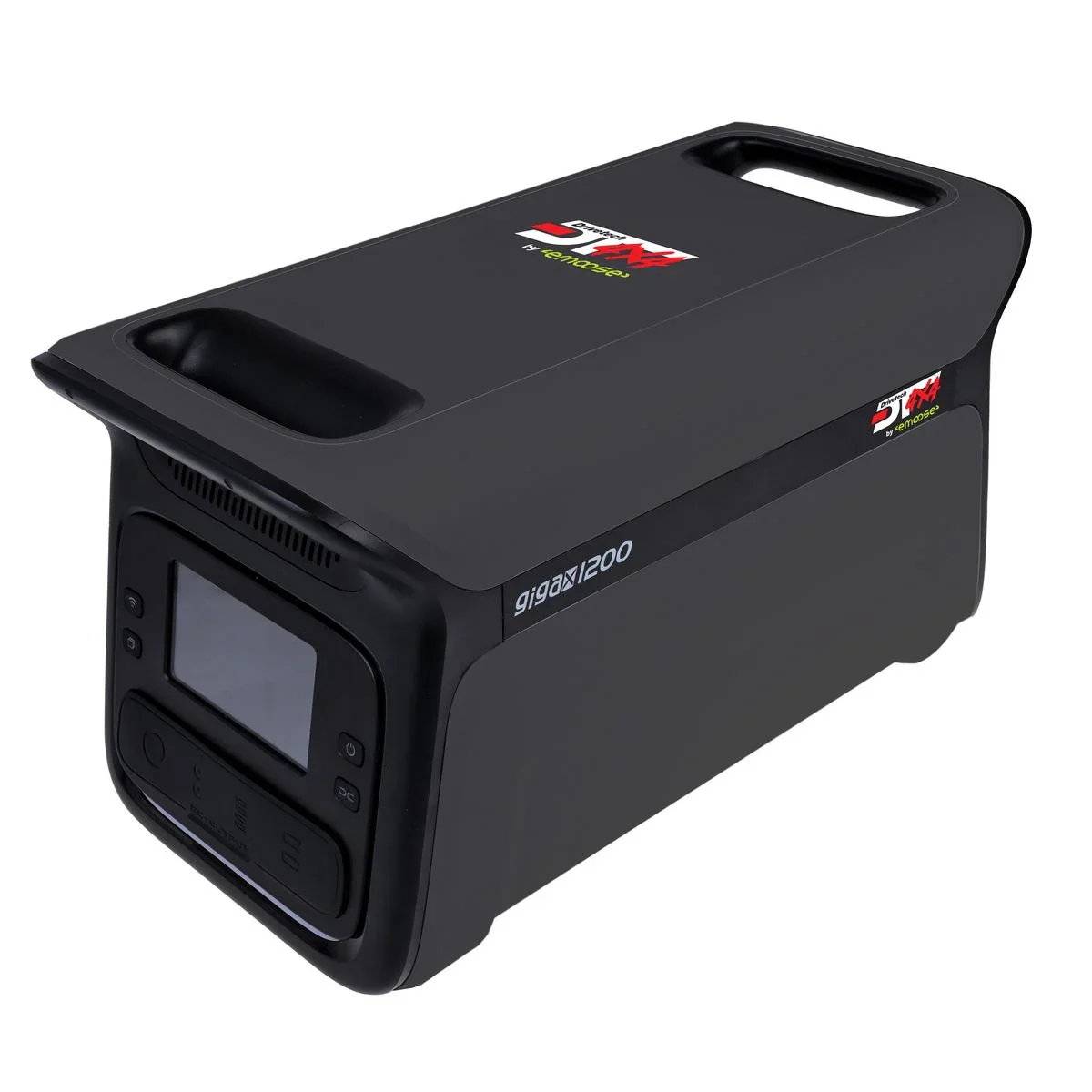

Drivetech 4x4 Portable Lithium Battery Pack - DT-021200
