PRODUCT DETAILS

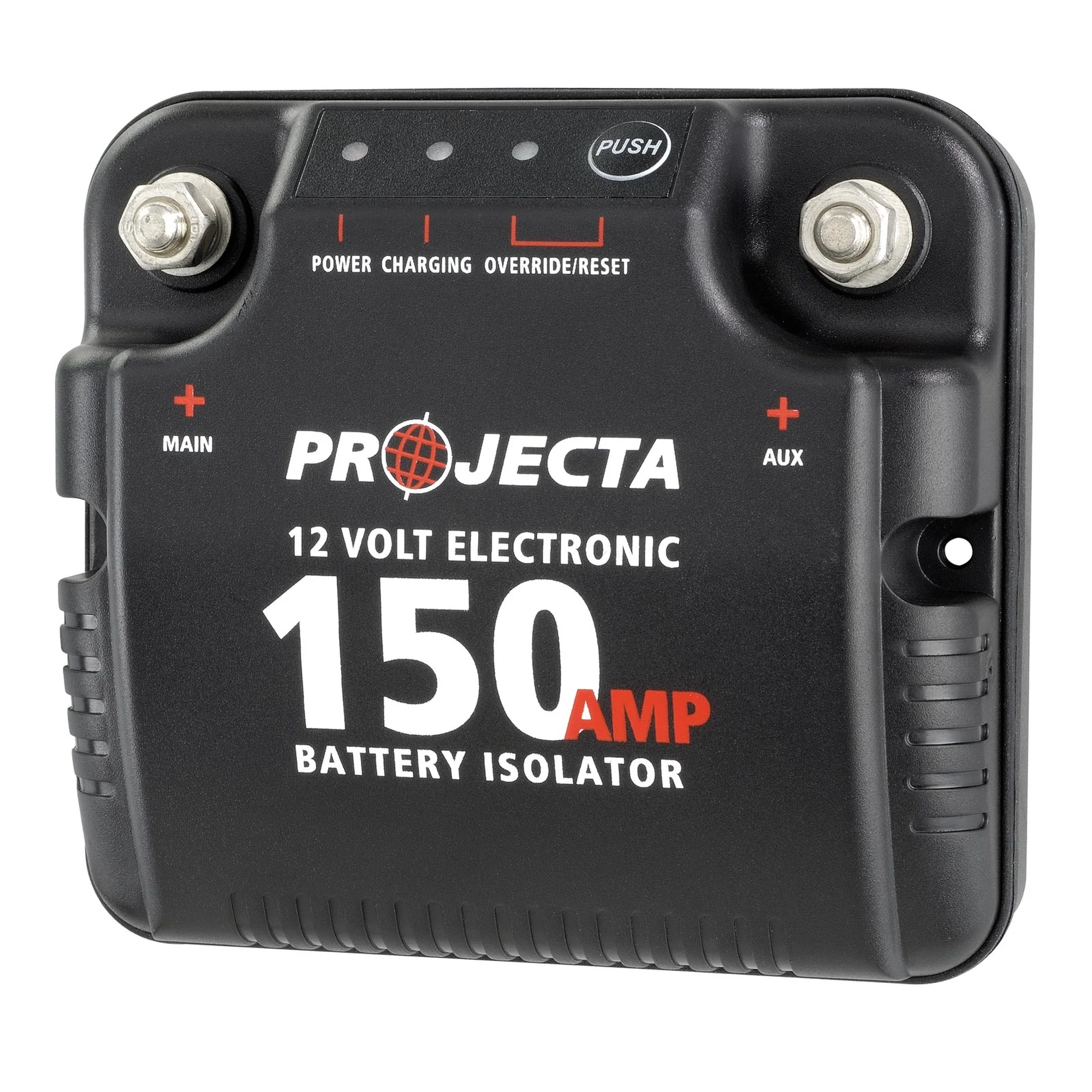

12V 150A ELECTRONIC ISOLATOR DBC150

An advanced electronic isolator that suits fitment to larger 4WD vehicles, including Landcruisers, Patrols or similar, that will run powerful accessories such as fridges, lights and inverters.

Features:

Priority charging

Ensures main battery is charged before connecting to the auxiliary.

L.E.D indicator

L.E.D illuminates to highlight charge status.

Manual override

Allows batteries to be manually paralleled for jumpstarting.

Vehicle protection

Built-in over current and surge protection.

Permanent fixture

Supplied bracket and screws for the mounting unit.

Specifications:


PART NO	DBC150
VOLTAGE	12V
CHARGING CURRENT	125A Continuous, 150A Peak
CUT-IN VOLTAGE	13.4V
CUT-OUT VOLTAGE	12.8V
CUT-OUT DELAY	60 seconds
MINIMUM OPERATING VOLTAGE	One battery above 7.5V
CHARGE TYPE	Parallel
CONTROL	MCU
MOUNTING	Surface/firewall battery side
CURRENT DRAW	Charging 500mA (standby 30mA)
SURGE PROTECTION	Built-in
APPROVALS	EMC

Electronic Isolators

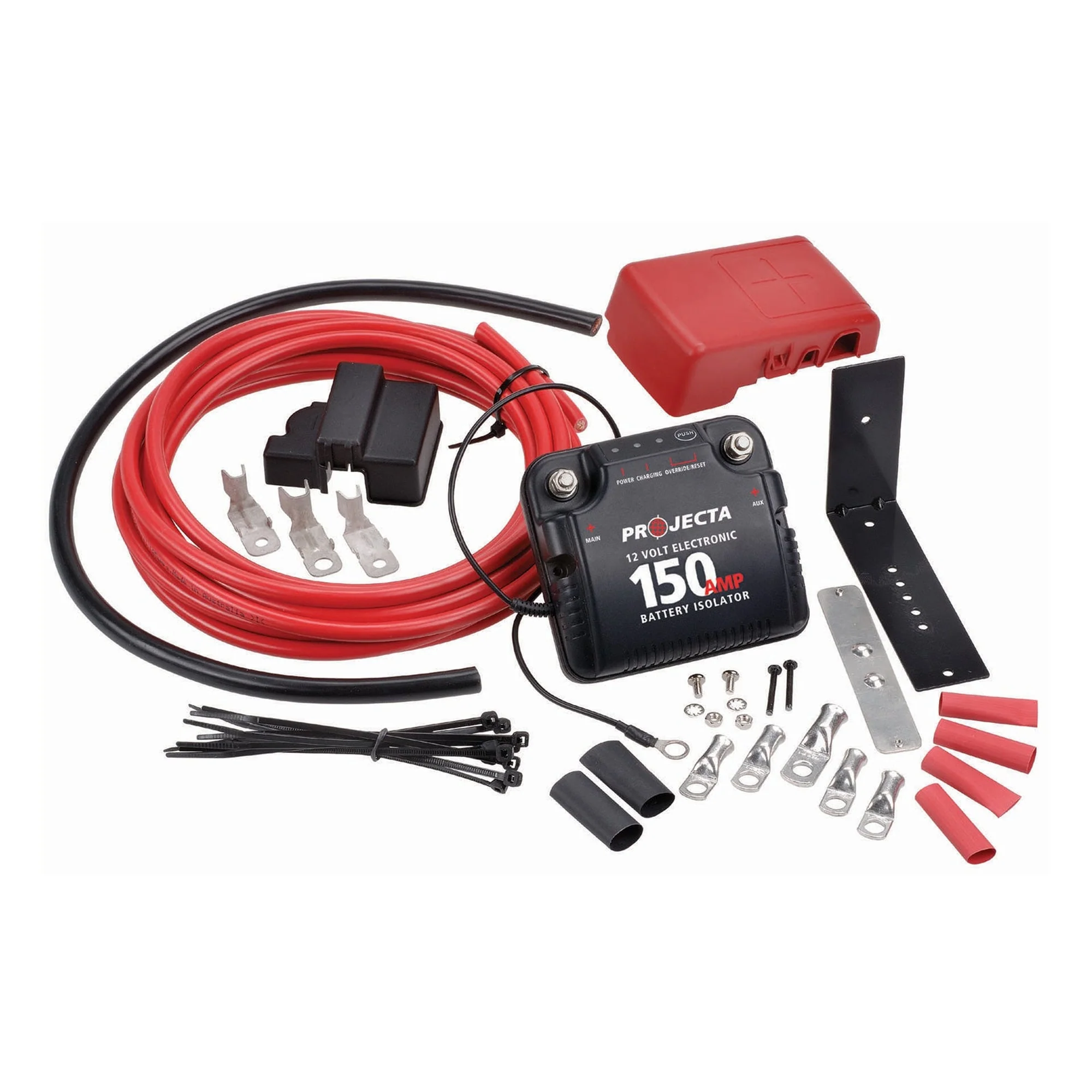

12V 150A ELECTRONIC ISOLATOR KIT DBC150K

12V 150A ELECTRONIC ISOLATOR DBC150

12V 100A ELECTRONIC ISOLATOR KIT DBC100K

12V 100A ELECTRONIC ISOLATOR DBC100

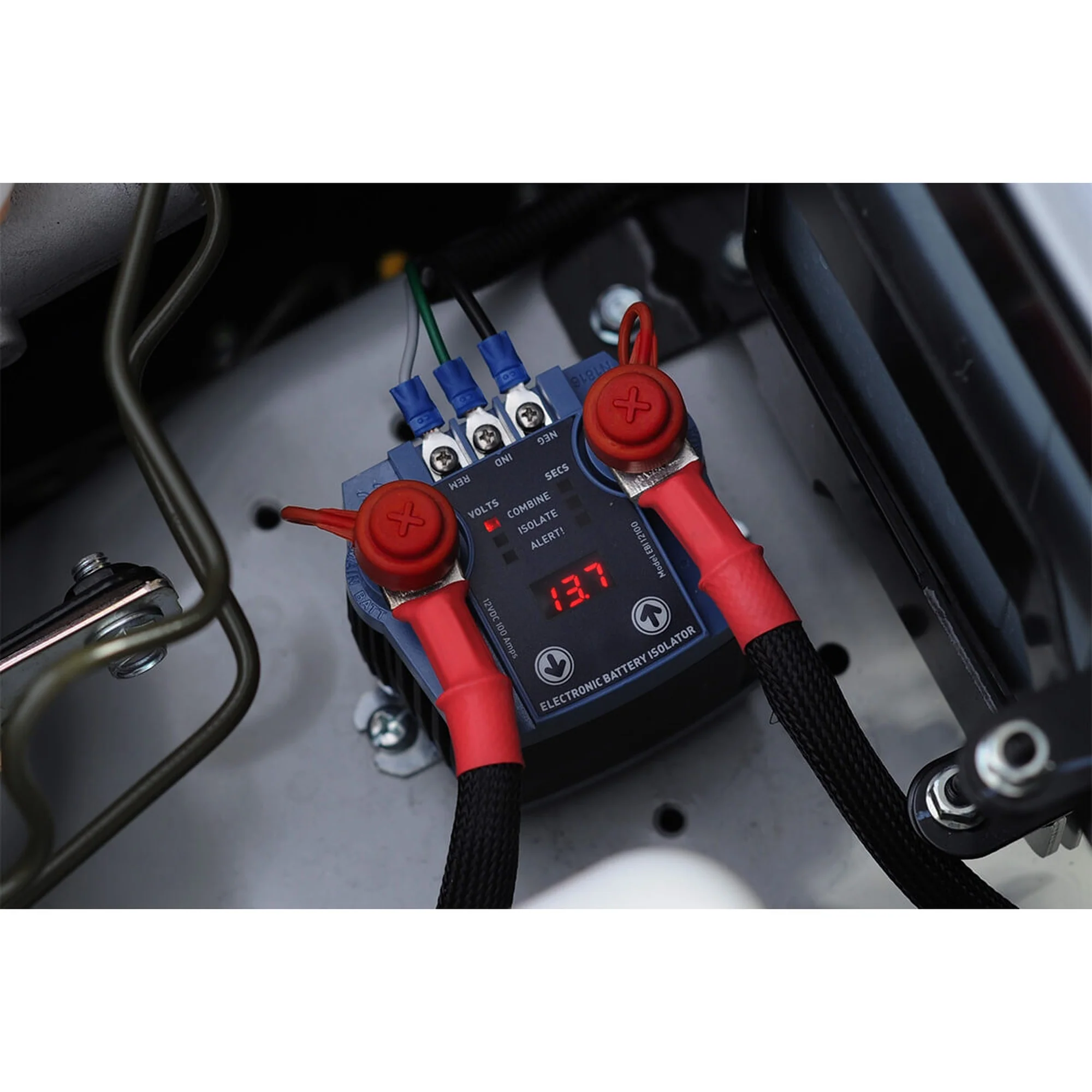

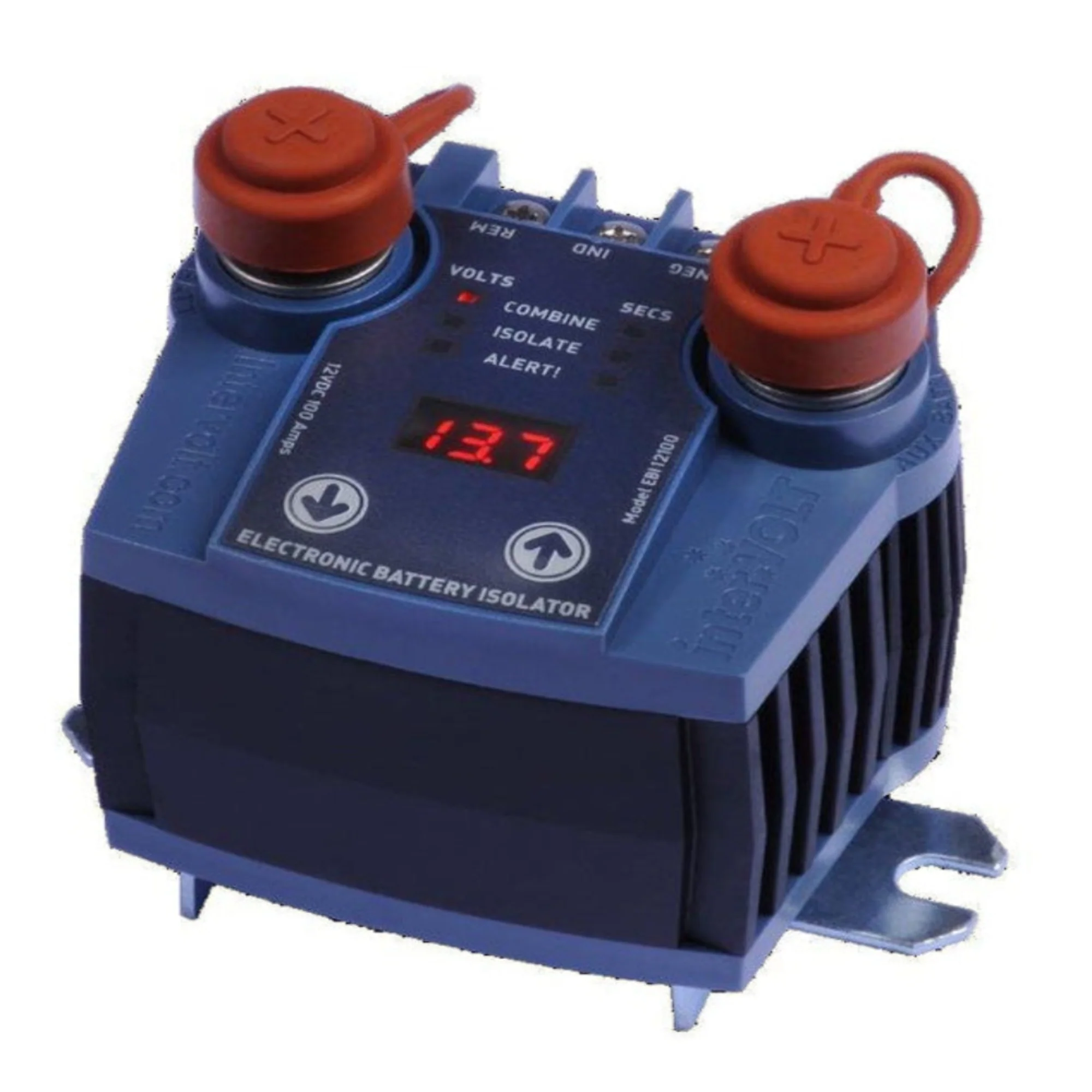

INTERVOLT ELECTRONIC ISOLATOR 12V INTERVOLT 100A EBI12100A
