12V AUTOMATIC 21A 6 STAGE BATTERY CHARGER PC2100

PRODUCT DETAILS

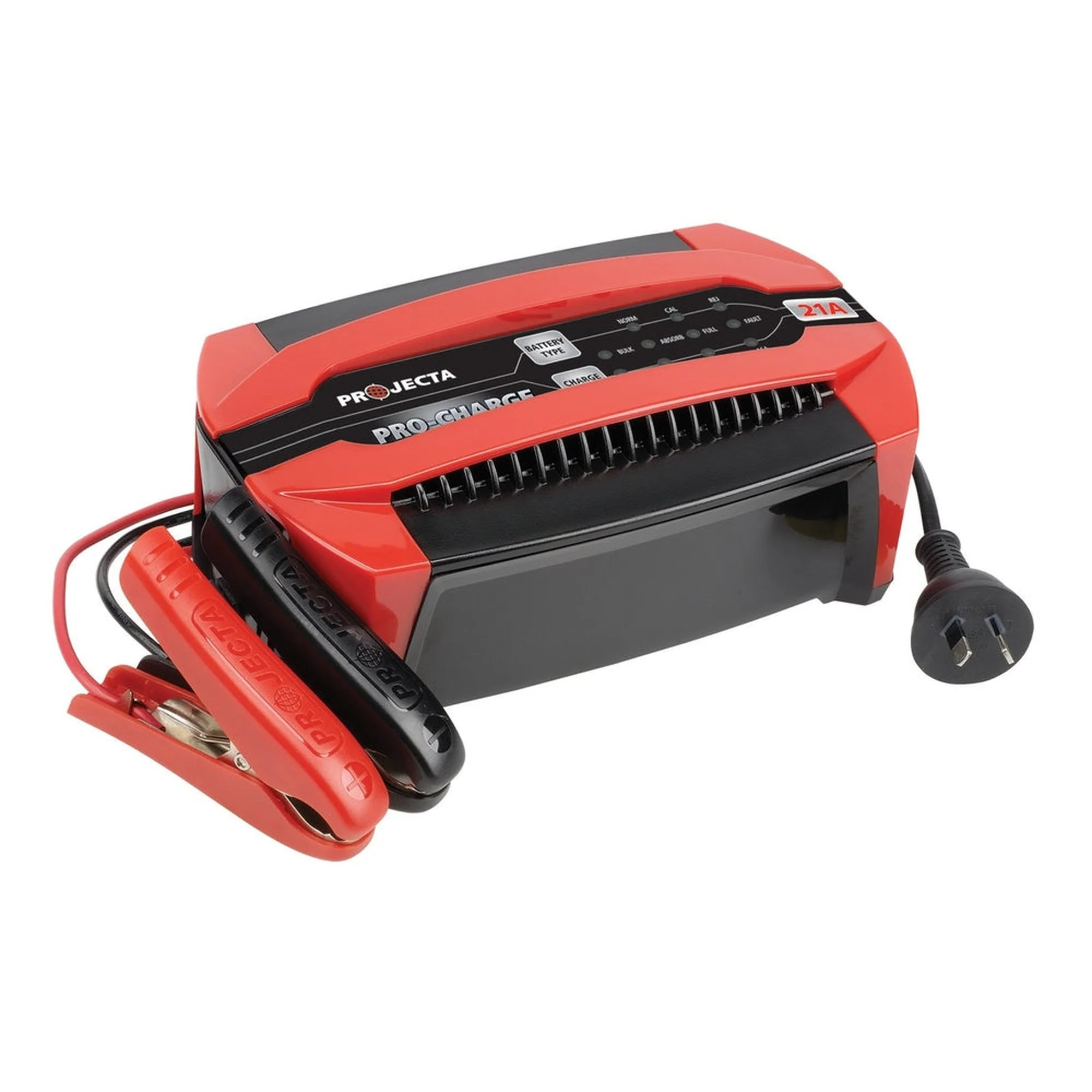

12V AUTOMATIC 21A 6 STAGE BATTERY CHARGER PC2100

A powerful charger offering a comprehensive 6 stage charge ideal for a wide range of battery sizes.

Features:

Adjustable Output
Suitable for a wide range of different size batteries.

Calcium Mode
Adjusts the charging profile to suit calcium batteries.

Rejuvenation Mode
Revitalises tired batteries, increasing battery life, and performance (subject to battery condition).

Side Mounting Wings
Optional mounting wings for permanent installation.

Safer Charging

Spark free and polarity protected.

Specification:

PART NO		PC2100
TYPE		6 Stage Battery Charger
INPUT		240VAC, 50Hz, 600W
OUTPUT		12V
OUTPUT CURRENT		2, 4, 12, 21A
MINIMUM START VOLTAGE		3.0V
BACK DRAIN		1mA
APPROVALS		Electrical Safety, EMC



L.E.D. Charge Indication

BLUE LIGHT ON		Bulk and absorption charging
GREENLIGHT ON		Fully charged and maintaining, no need to turn off
AMBER LIGHT ON		Rejuvenation process occurring
RED LIGHT ON		Indicates faulty battery



Battery Charge Times

PC2100	VOLTAGE	BATTERY SIZE	CHARGE TIME
AUTOMOTIVE	12V	80–2500CCA	7–24 hrs
MARINE	12V	110–3500MCA	7–24 hrs
DEEP CYCLE	12V	14–420Ah	7–24 hrs
