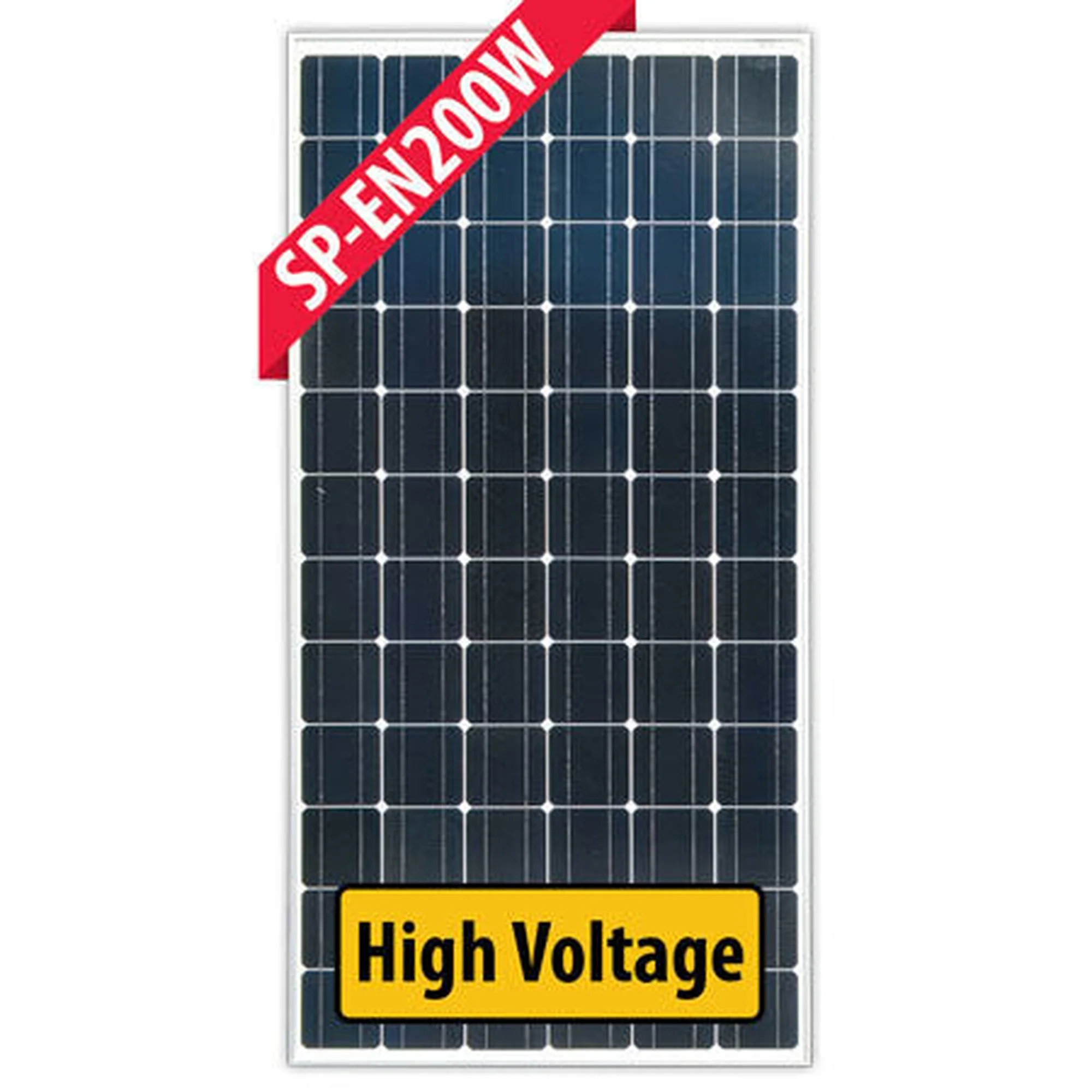

Enerdrive 200W 24V Mono Crystalline Slim Fixed Solar Panel
Enerdrive 200W 24V Mono Crystalline Slim Fixed Solar Panel, 5 Year Warranty. Enerdrives 200W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).
PLEASE NOTE: SP-EN200W-24 are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Specifications
SKU - SP-EN200W-24V
Brand - Enerdrive
GTIN - 9342616026236
Product Category - Portable Solar Panels
Warranty Period - 5 Years
Solar Panel Type - Fixed Solar Panels
Wattage - 200
Test Conditions - 1000W/m² , AM1.5 , 25°C
Max Power Current Im(A) - 5.37
Short Circuit Current Isc(A) - 6.17
Dimensions - 1580 x 800 x 40 (one panel)
Net Weight (kg) - 15.3
Max System Voltage (VDC) - 1000
Max Power Voltage Vm(V) - 37.26
Voltage DC (V) - 24V
Open Circuit Voltage Voc(V) - 43.7
Popular Product Applications - Caravan solar panels, 12V solar panels, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
