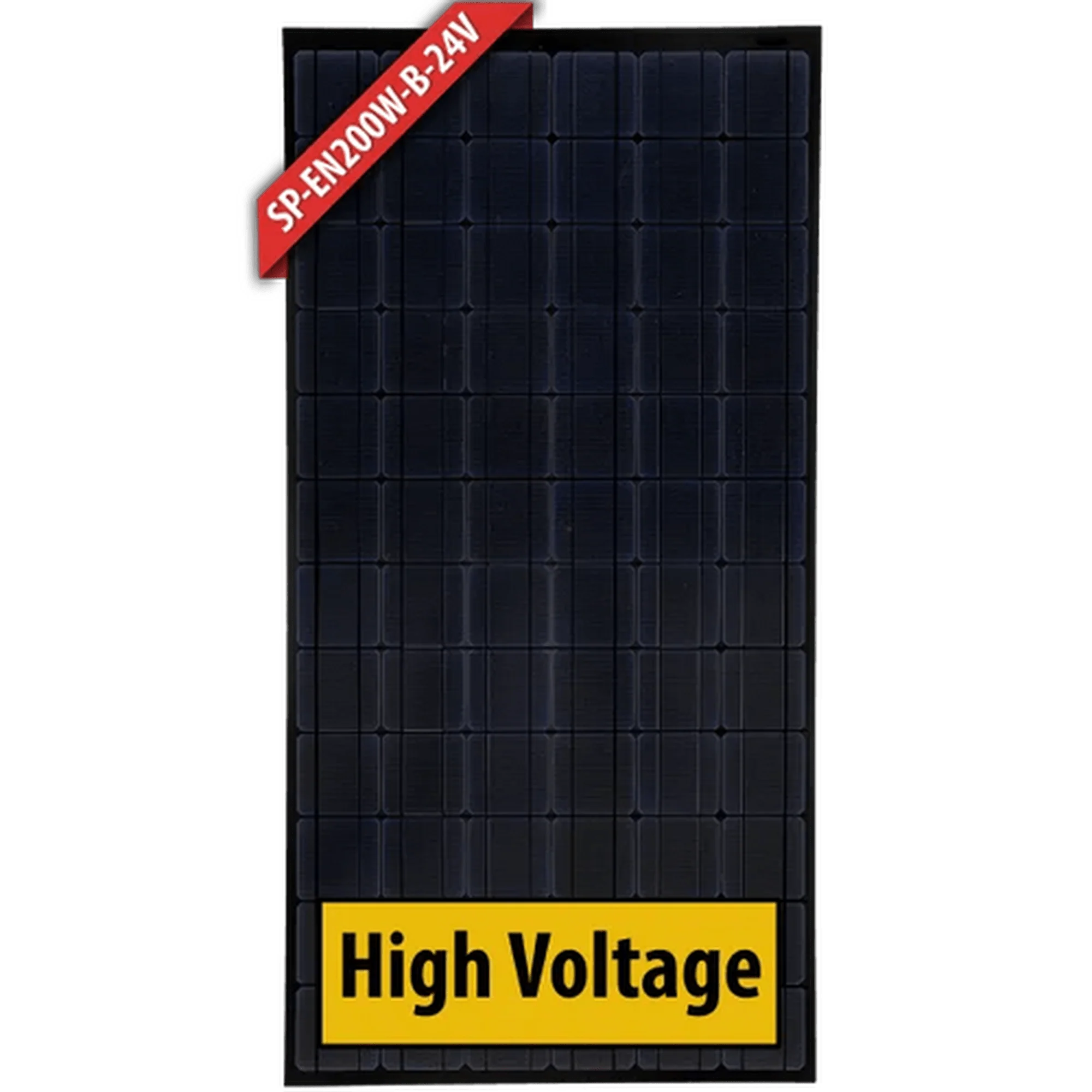

Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black
Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit.
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Key Features:
- High Conversion Efficiency. Module efficiency up to 15.67% achieved through advanced cell technology and manufacturing capabilities.
- Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability.
- High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant.
- Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage.
- Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal).
- Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors.
Specifications
SKU - SP-EN200W-B-24V
Brand - Enerdrive
Product Category - Portable Solar Panels
Warranty Period - 5 Years
Solar Panel Type - Fixed Solar Panels
Wattage - 200
Test Conditions - 1000W/m² , AM1.5 , 25°C
Max Power Current Im(A) - 5.37
Short Circuit Current Isc(A) - 6.05
Dimensions - 1580 x 808 x 40 (one panel)
Net Weight (kg) - 15
Max System Voltage (VDC) - 1000
Max Power Voltage Vm(V) - 37.3
Voltage DC (V) - 24V
Open Circuit Voltage Voc(V) - 43.7
Popular Product Applications - Caravan solar panels, 12V solar panels, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
