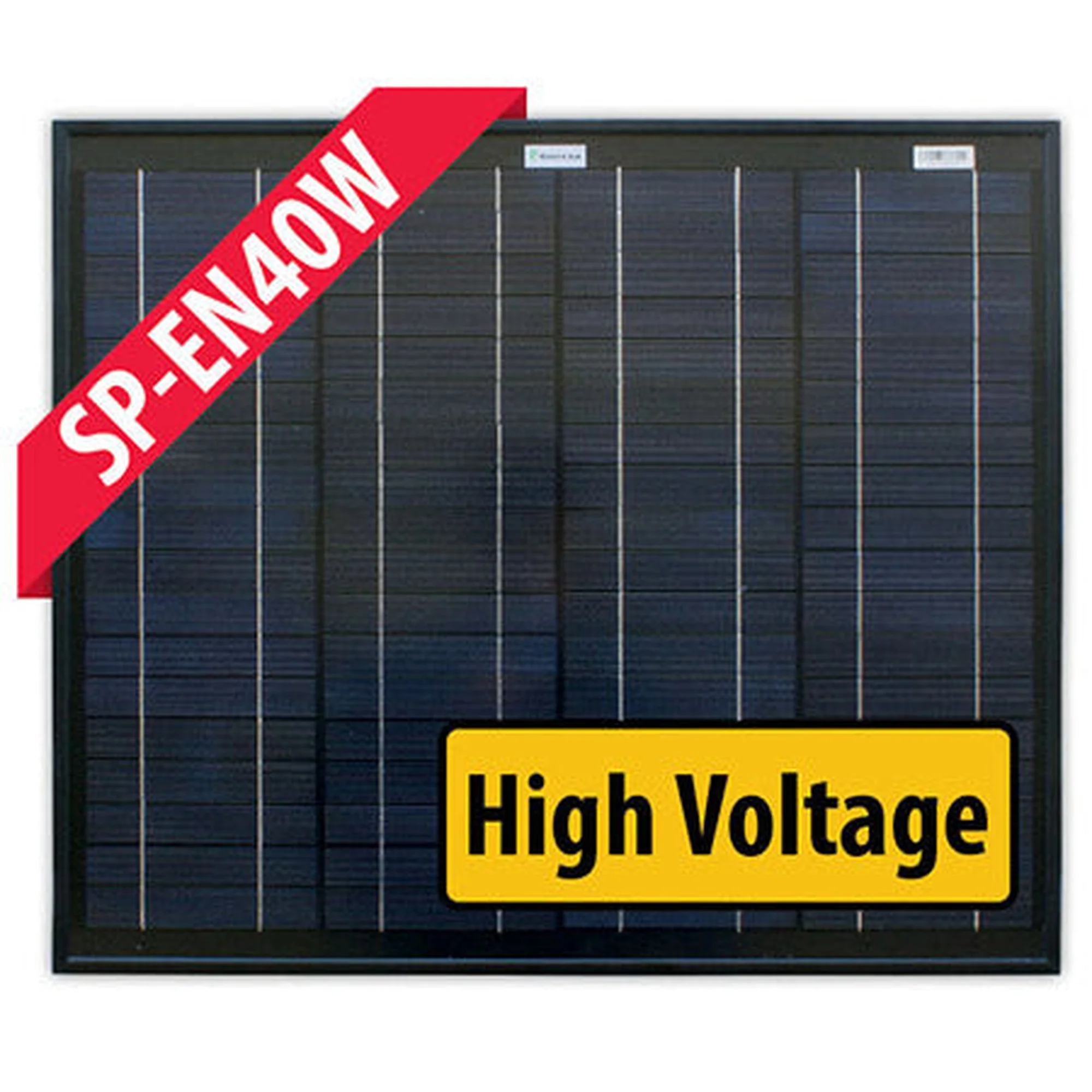

Enerdrive 40W 24V Mono Crystalline Fixed Solar Panel
Enerdrive 40W 24V Mono Crystalline Fixed Solar Panel, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit.
Features:
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included
Specifications
SKU - SP-EN40-24V
Brand - Enerdrive
GTIN - 9342616026274
Product Category - Portable Solar Panels
Warranty Period - 5 Years
Solar Panel Type - Fixed Solar Panels
Wattage - 40
Test Conditions - 1000W/m² , AM1.5 , 25°C
Max Power Current Im(A) - 1.13
Short Circuit Current Isc(A) - 1.85
Dimensions - 567 x 670 x 35
Max System Voltage (VDC) - 1000
Max Power Voltage Vm(V) - 35.5
Net Weight (kg) - 4.6
Open Circuit Voltage Voc(V) - 43.1
Popular Product Applications - Caravan solar panels, 12V solar panel, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
