Ultimate9 LED Work Lamp: Pedestal Mount

Description:

Whether from a canopy, trailer, roof rack or rear bar, easily illuminate & unveil your campsites, worksites, or trails when tackling the dark.

With x4 Osram^® 10W LED chips, a spot pattern reflector, and a Lexan^® Polycarbonate diffused lens - the Pedestal Work Light will throw a large area of light, reaching 1 Lux at 75m.

Tested to meet the highest waterproof ratings, a 6063 grade aluminium housing and military grade breather allow wider & greater heat dissipation - improving longevity.

Better still, it's easy to mount with its single stainless steel bolt.

Features:

• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
  IP68 for term-long submersion and total dust ingress.
  IP69K for stream jet cleaning.

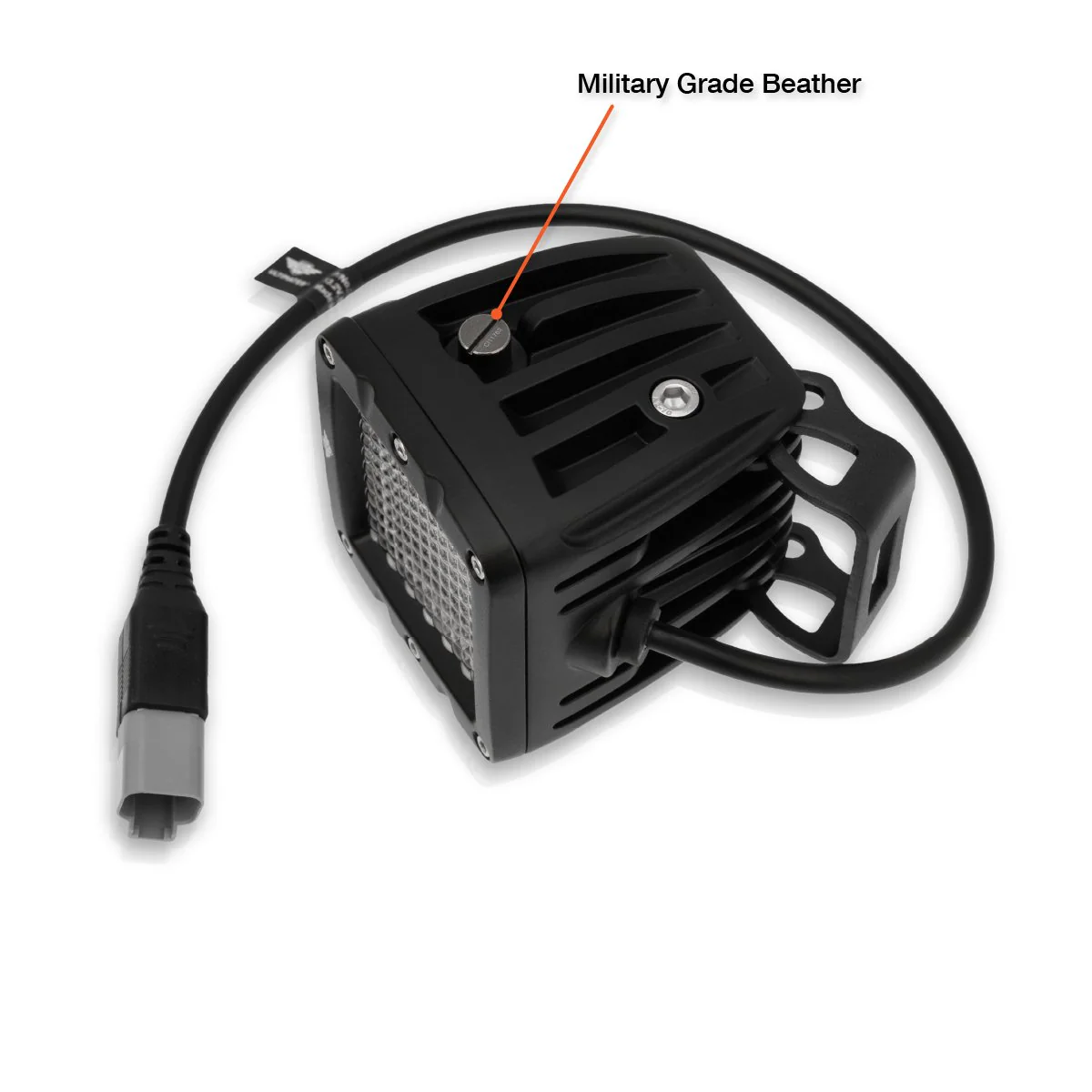

• Ventilation: Military grade breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
• Housing: Die-cast 6063 aluminium housing with 304 Stainless Steel fastener. Overlaid with a UV & corrosion resistant Dupont® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: Diffused Flood Beam Pattern.
• Technology: 4x Grade A Osram 10W LED chips & sealed DT connectors.

Specifications:

• Input Power: 9-36V
• Beam Pattern: Diffused Flood
• Power: 40W
• Current Draw: 2.3A @ 13.2V
• Effective Lumen: 2,957 lm

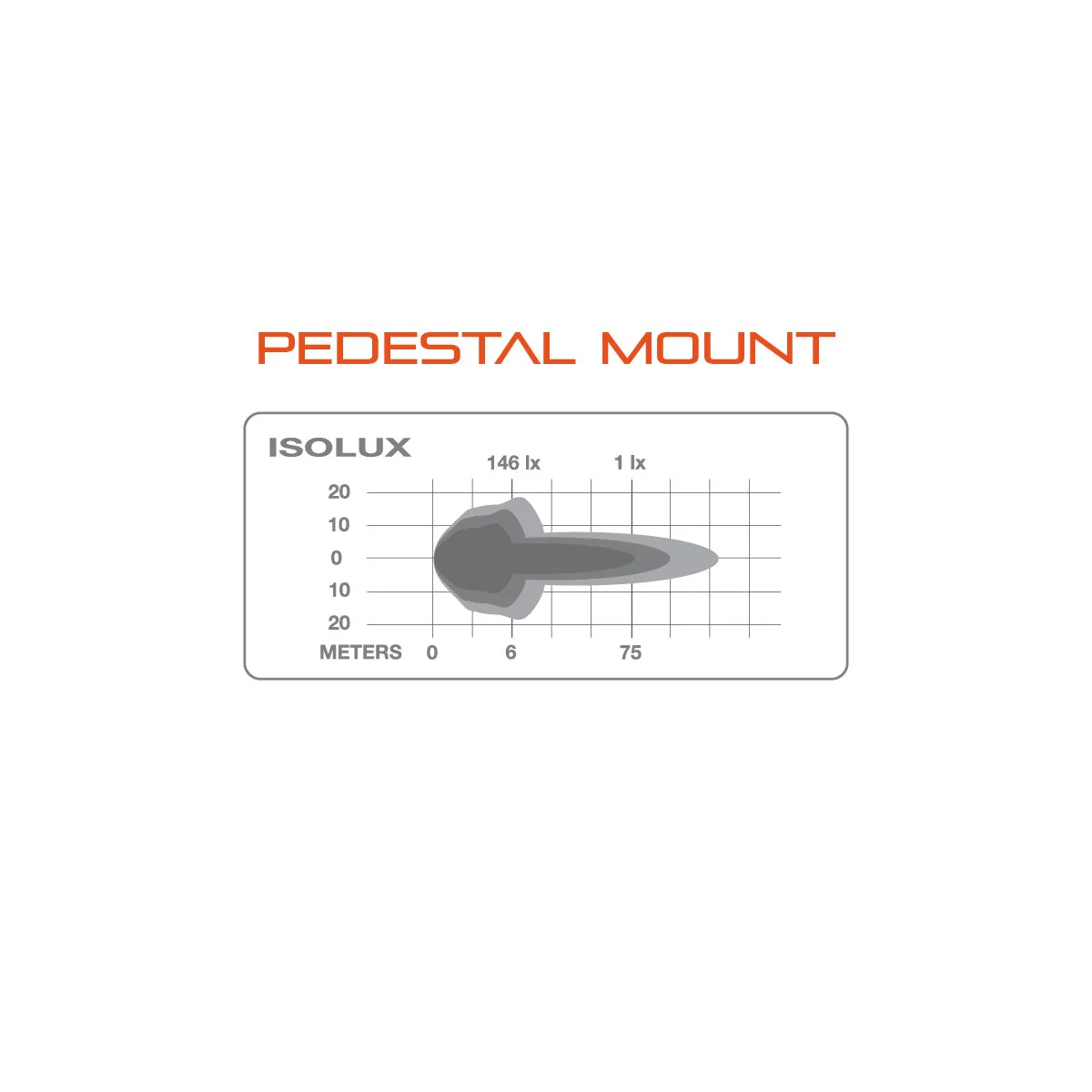

• Beam @ 1 Lux: 75m
• LED Chips: Osram 10W
• Colour Temp: 6000-6500K
• Housing Material: Die Cast 6063 Aluminium
• Housing Coating: DuPont®
• Lens Material: GE Lexan® Polycarbonate
• IP Rating: IP68 / IP69K
• Ventilation: Military Grade
• Weight: 0.9Kg, Loom - 0.25Kg
• Body Dimensions: (L)82 x (H)76 x (W)83mm
• Lens Dimensions: 2" x 2" (50 x 50mm)
• Connector Type: DT Sealed
• Operating Temp: -40ºC - 145ºC
• Certification: CE, RoHS, RCM

Kit Includes:
